Writing Music Using abc Notation

abc music notation is an easy and convenient way of writing and editing music. Here we will look at how we can read, write and edit the abc code to create the music. We also provide a quick reference guide to the commonly used symbols, characters and letters used in abc music notation.

Let us start with an example, here is the start of a well known Irish tune:

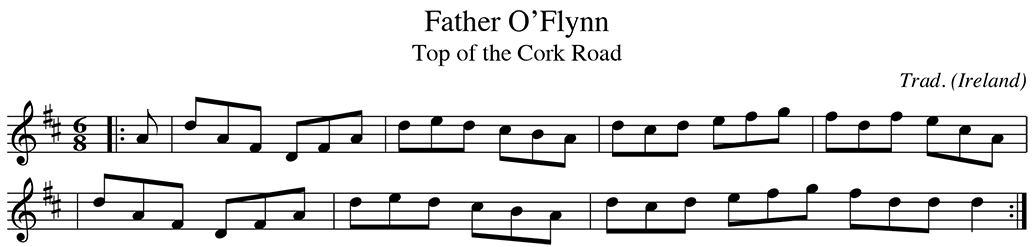

Example of abc music notation

And here is the abc code that created this sheet music:

X:10
T: Father O'Flynn
T: Top of the Cork Road
C: Trad.
O: Ireland
R: jig
M: 6/8
L: 1/8
K: Dmaj
|: A | dAF DFA | ded cBA | dcd efg | fdf ecA |
| dAF DFA | ded cBA | dcd efg fdd d2 :|

Header Codes

First we have the header codes, each is a letter followed by a colon.

X: Tune number. Sometimes used for tune library identification
T: The title of the tune, song or piece, this is printed at the top of the music score.
T: A secondary title line often used for alternative tune names, this is printed in small letters under the first title.
C: The composer of the music, if it is traditional put "traditional" or "trad". This is printed under the titles and to the right.
M: The meter of the music such as 6/8 for a jig, 4/4 for a reel and 2/4 for a waltz. C| (note that | is a vertical line not a small L or a large i) can be used for common 4/4 time.
L: The note length as a proportion of a bar such as 1/8 is used for jigs and reels
R: Rythm such as hornpipe, jig, reel, waltz, polka, etc. The better playback programs use this information to add the correct rythm during playback.
K: The key that the tune is in such as D or Dmaj for D major or Edor for E dorian.

IMPORTANT NOTE: The headers X: T: and K: must be included and must be placed in the correct order with X: on the first line, T: on the second line and K: on the last line of the headers.

Other header lines are often used such as:

O: Origin, this will be printed in brackets after the C: entry.
D: Discography, where the music can be found on recordings.
Q: Speed of playback in beats per minute, this may only be needed if you are exporting a midi file. Playback programs allow you to adjust the speed of playback on the fly.
B:
R:
Z: Often used for id code information.
S: Source - commonly used for where the tune was collected from.
I:
H:

abc Coding.

Under the headers we type the code for the tune itself.

Here is an example to illustrate what we have covered so far:

X:1
T:Main Title
T:Secondary title or alternative names
C:Composer
O:Yorkshire
M:4/4
Q:160
L:1/8
R:Reel
K:C
|A,B,CD EFGA|Bcde fgab|c'd'e'f' g'a'b'|

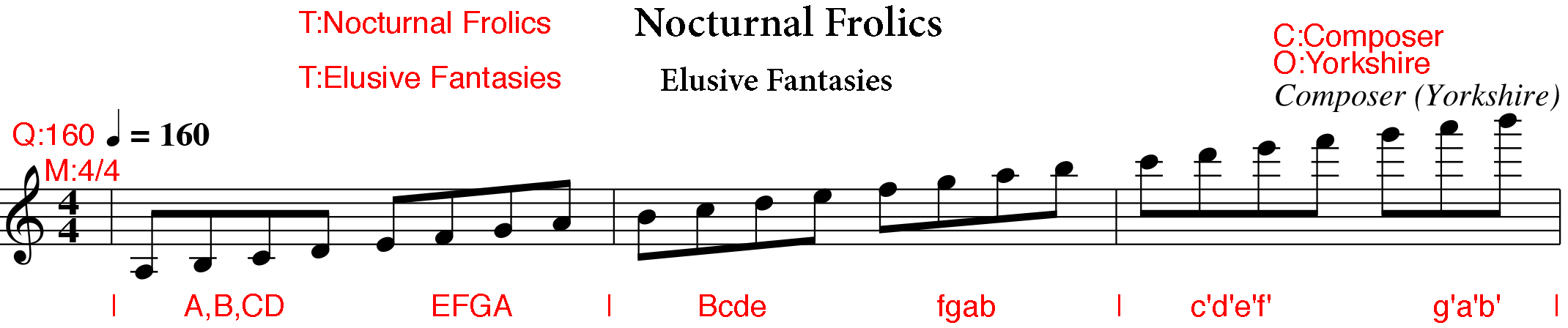

And here is what this code will look like:

Example of abc music notation

NOTES:

  1. The program automatically draws the five horizontal lines and adds the clef at the start of the line.
  2. To add a vertical line which starts and finishes the line and seperates it into bars we place a | (this is a vertical line not a capital i or small L) between the notes.
  3. The program will automatically connect notes together using. To stop the notes being jouned we put a space between them.

Setting the key

By adding the K: header we set the key, if the key is C then there are no sharps and flats. If the key is a G it has one sharp - the F#, if the key is D then it has 2 sharps the F# and the C#. abc recognises this and will add the sharps and flats for the key at the start of the stave (the line of music). In the same way as when we are reading music, abc will consider every note marked as a sharp or flat at the start of the music as that sharp or flat everytime it occurs in the music.

Sharps, flats and natural notes

If we wish to make a note sharp we place a ^ before the note so ^c = C#

To make a note flat we place an underline _ before the note so _e = E flat

To make a note natural (cancel out the sharp or flat) we place and equal sign = before the note so =e returns E flat to E.

Accompaniment and Adding Chords

To add a chord we type the chord in excamation marks immediately before the abc note where the chord starts such as
| "G"gabg gabg | "Em"e

Songs and Adding Lyrics in abc

W: is placed after the code for the line of music followed by the words to be inserted.

Here is the abc code for adding chords and words:

X:2
T:Love Will You Marry Me?
M:C|
K:G
|:"G"D2DE GAB2|"C"GE E2 GE E2|"G"D2DE GABc|"D"dedB A2 "G"G2:||
W: - Love - will you - marry me, - marry me, __ marry me, - Love will you mar-ry me and take me out of dan-ger

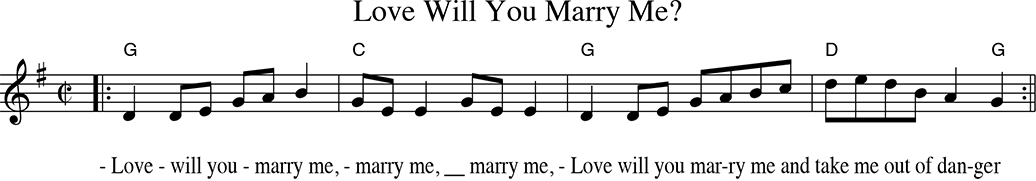

And here is what it will look like:

Example of abc music notation
